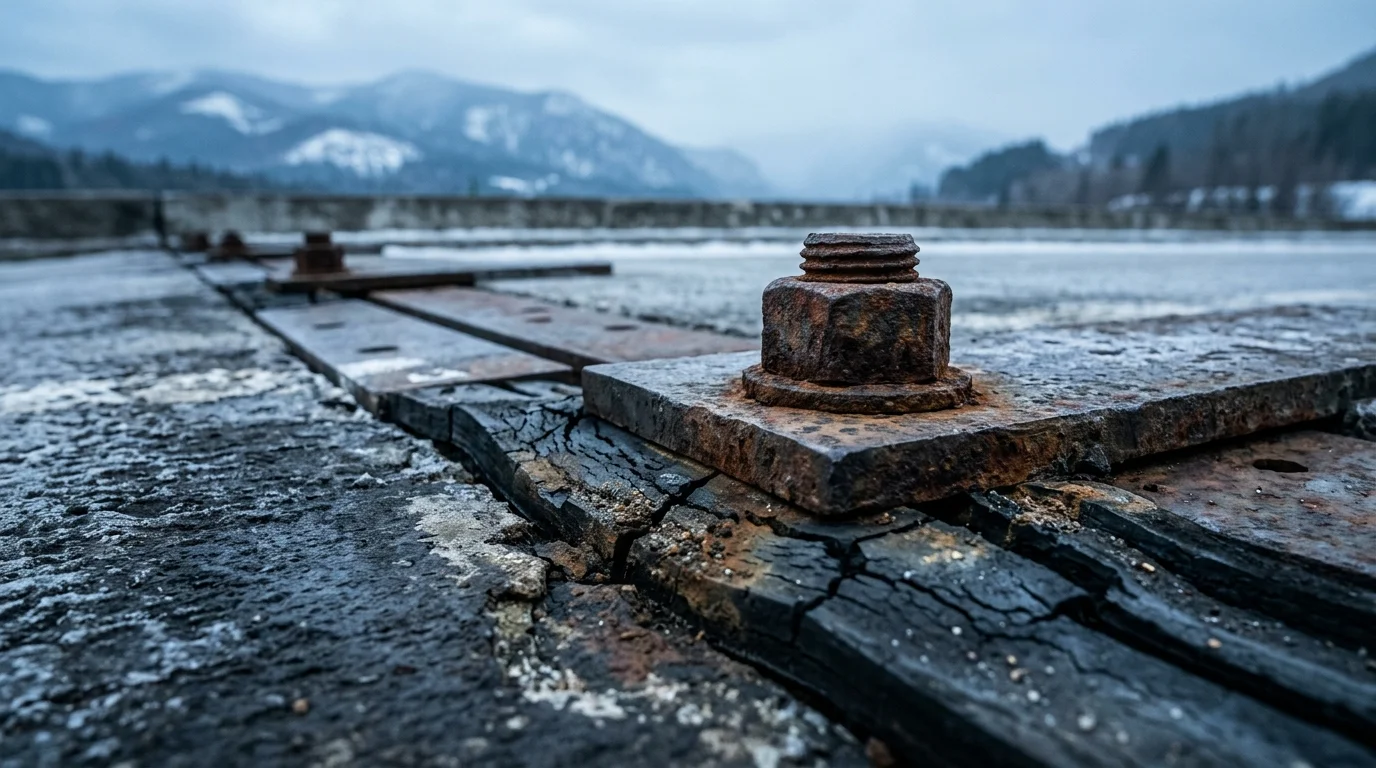

Summer 40°C, Winter -20°C: How Long Do Bridge Expansion Joint Bolts Last?

In 2023, bolts on a city’s bridge expansion joints experienced mass corrosion just five years after the bridge opened to traffic. The replacement cost was over 10 times the initial procurement cost.

Last week, I got a call from a client. His tone was anxious.

“Lao Wang, we have a river-crossing bridge. It’s only been open for three years, and three bolts near the expansion joints have snapped. The deck temperature hits 60°C in summer and drops to -15°C in winter. Is this normal?”

I asked him, “What bolts did you use? How was the preload controlled during installation?”

He paused for a few seconds. “Just… regular grade 8.8 bolts. The workers used a torque wrench.”

I sighed. This isn’t an isolated case. In the past five years, among the bridge fastener failure cases I’ve handled, a majority were directly related to preload loss caused by temperature cycling. Bridge expansion joint fasteners, enduring temperature differences of 50°C or more, suffer the repeated torment of thermal expansion and contraction every second.

By the end you will know how to select the right bolt grade and preload control method for your bridge project, and be able to estimate the expected service life under your local temperature conditions.

A 50°C Temperature Difference: What Do Fasteners Experience?

Let’s look at some data first. According to the “General Technical Conditions for Highway Bridge Expansion and Contraction Devices” (JT/T 327-2016), the design of bridge expansion joints must consider displacement needs under extreme temperatures. Taking a simply supported beam bridge with a 100-meter span as an example:

Temperature Change (°C)	Beam Expansion/Contraction (mm)	Additional Axial Force on Bolt (kN)
+20 → +40	+12.5	+28.6
+20 → -10	-18.7	-42.3
+20 → -20	-25.0	-56.5

Note: Calculations based on Q235B steel linear expansion coefficient 1.2×10⁻⁵/°C, bolt M20×200, preload 100kN.

See that? In just one complete temperature cycle, the force variation on the bolt exceeds 50kN. If the preload isn’t controlled properly, or if the bolt material’s fatigue strength is insufficient, fracture is just a matter of time.

flowchart LR
    A["Incorrect Selection"] --> B["Premature Failure"]
    B --> C["Equipment Downtime"]
    C --> D["Economic Loss"]

    style A fill:#fff3cd,stroke:#f39c12
    style D fill:#ffcdd2,stroke:#d32f2f,stroke-width:3px

Three Solutions, Three Outcomes

At Yaxiio, we categorize bridge fastener solutions into three tiers, corresponding to different operating conditions. This isn’t arbitrary; it’s backed by standards like ISO 898-1 (Mechanical properties of fasteners), ASTM A325 (Structural bolts standard), and GB/T 3632 (High strength bolts with large hexagon head for steel structures).

Solution A: Q235B Standard Fasteners – The “Passing Grade” for Small to Medium Span Bridges

Applicable scenarios: Small to medium span bridges (span ≤ 40m), seismic fortification intensity ≤ 6, annual temperature difference ≤ 40°C.

This solution uses high-strength bolts (M20×200, Q235B hot-dip galvanized finish, grade 8.8), paired with Nordlock wedge-locking washers and NLGI-2 lithium-based anti-corrosion grease. Frankly, this is the most basic configuration, suitable for everyday use. But if you put it in an environment with a 50°C temperature difference – like that client’s bridge – the fatigue limit of a grade 8.8 bolt is only about 280MPa (ISO 3800:1993), and the alternating stress from temperature cycling can easily exceed this value.

Real Case: A provincial highway bridge used Q235B fasteners with an annual temperature difference of 45°C. In the 4th year of service, the bolt fracture rate at the expansion joints was 12%. After switching to the 40Cr solution, there were zero failures in 6 years.

Solution B: 40Cr High-Strength Fasteners – The “Workhorse” for Large Span Bridges

Applicable scenarios: Large span bridges (span 40-200m), seismic fortification intensity 7-8, annual temperature difference ≤ 60°C.

The core configuration is high-strength bolts (M27×250, 40Cr quenched and tempered, grade 10.9), paired with hydraulic tensioner interfaces (preload controllable to ±3%) and an anti-corrosion coating of epoxy zinc-rich primer + polyurethane topcoat (salt spray resistance 1000h, compliant with ASTM B117).

The fatigue limit of a grade 10.9 bolt is increased to about 400MPa, over 40% higher than grade 8.8. More importantly, the hydraulic tensioner allows precise preload control, avoiding the common ±15% error of torque wrenches. In conditions with a 50°C temperature difference, this solution has a design life of 15-20 years.

Solution C: 40CrNiMoA Extreme Fasteners – The “Ultimate Solution” for Extra-Large Bridges

Applicable scenarios: Extra-large bridges (span > 200m), seismic fortification intensity ≥ 9, marine environments, annual temperature difference ≥ 60°C.

This is Yaxiio’s flagship solution. It uses special alloy bolts (M36×350, 40CrNiMoA vacuum degassed, grade 12.9), paired with 316L stainless steel connection plates (integrally forged) and smart monitoring tags (RFID chip, recording installation time and preload).

The fatigue limit of a grade 12.9 bolt exceeds 500MPa (ISO 898-1:2013). The hydraulic synchronous tensioning system controls preload accuracy to ±1%. This solution has a design life of 25-30 years.

Preload Control: The Make-or-Break Factor

Selecting the right bolt grade is only the first step. ASTM F3125 points out that in high-strength bolt failures, fatigue fracture caused by insufficient preload accounts for a significant proportion. The ±15% error of a torque wrench can make a 10.9-grade bolt perform worse than an 8.8-grade one. Solutions B and C, equipped with hydraulic tensioners (±3%) and smart monitoring tags, truly lock in the preload.

Selection Reference Table

Temperature Difference Range (°C)	Recommended Solution	Expected Service Life (years)
≤40	Solution A	8-12
40-60	Solution B	15-20
≥60	Solution C	25-30

Summary: Two Key Decisions

• For bridges with an annual temperature difference over 40°C, avoid Q235B grade 8.8 bolts; choose 40Cr or 40CrNiMoA with hydraulic preload control.
• Preload accuracy is as critical as bolt grade; a torque wrench’s ±15% error can negate the benefits of a higher-grade bolt.

Next Steps

Before selecting a solution, prepare the following information:

1. Local 50-year extreme temperature records (from meteorological bureau)
2. Bridge expansion calculation (refer to JT/T 327-2016 Appendix A)
3. Traffic load class (Highway Class I or Class II)
4. Existing bolt specifications and installation records (if any)

Once ready, you can refer to industry cases or contact us for a customized solution.
