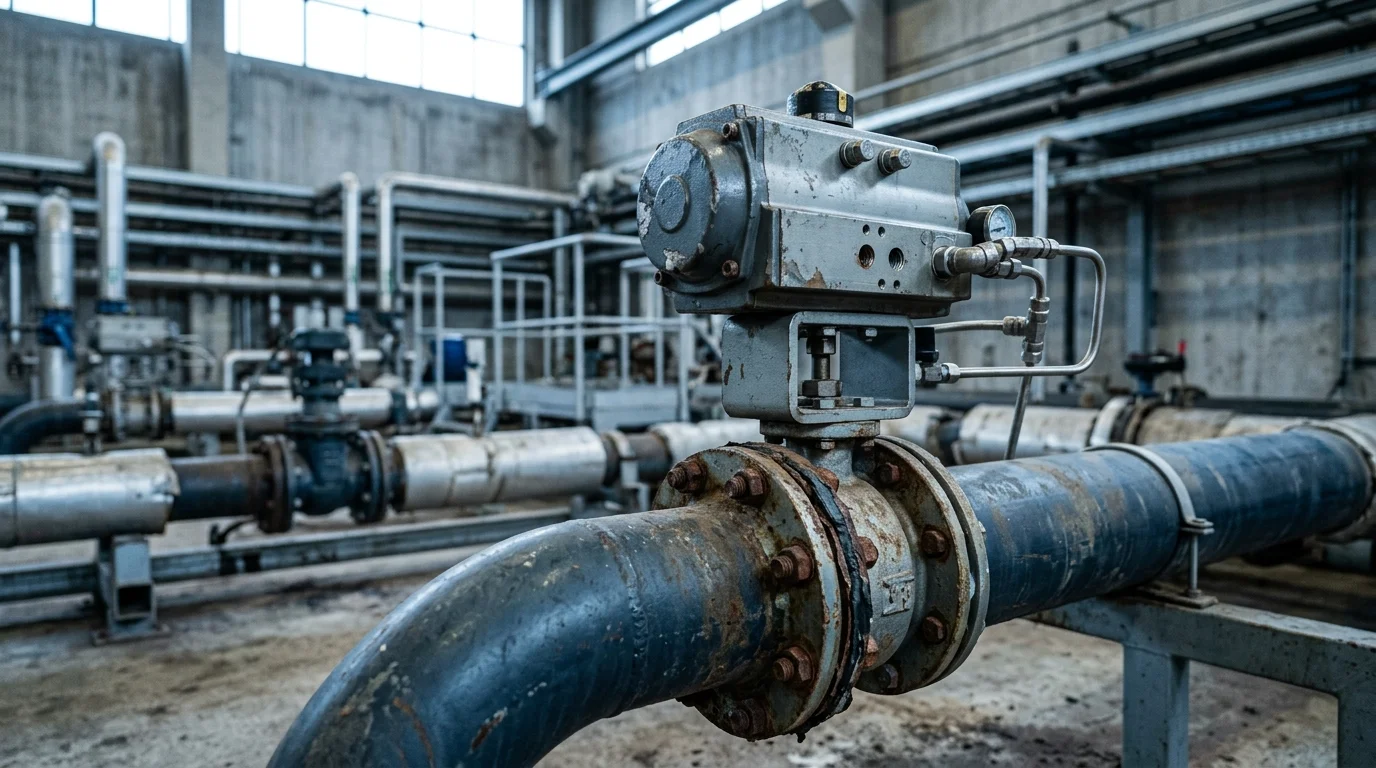

Valve Actuator Bracket Bolts Loose? Why Loosening Starts with Material and Load Rating

Last year, a wastewater treatment plant lost an actuator due to loose bracket bolts, resulting in a direct loss of 120,000 CNY and a 3-day shutdown. Bracket selection errors account for a large portion of valve actuator failures, per the installation requirements of GB/T 12224-2015. By the end you will know how to choose the right bracket material for your actuator and avoid costly downtime.

Today, we directly compare three solutions to help you avoid this unnecessary expense.

1. Core Differences: Material Determines Lifespan

Solution A: Q235B Standard Carbon Steel Bracket

Applicable Scenarios: Light-duty actuators (≤50 kg)/Indoor dry environments
Lifespan: 10-20 years
Key Parameters:

• Bracket: 200×200×10 mm, Q235B welded + hot-dip galvanized (per GB/T 3091-2015)
• Clamp: φ89-114 mm adjustable, Q235B stamped (per GB/T 700-2006)
• Bolts: M12×80, grade 8.8 with Dacromet coating (per GB/T 3098.1-2010)
• Vibration pad: Rubber pad 5 mm, Shore hardness 60A (per GB/T 531.1-2008)
• Anti-corrosion grease: Lithium grease NLGI-2 (per GB/T 7324-2010)

Cost: Approx. 300-500 CNY/set
Typical Issues: Hot-dip galvanizing coating fails in humid environments after 3-5 years; bolts require quarterly inspection.

Solution B: 304 Stainless Steel Heavy-Duty Bracket

Applicable Scenarios: Medium-duty actuators (50-200 kg)/Wet or corrosive environments
Lifespan: 20-35 years
Key Parameters:

• Bracket: 300×300×12 mm, 304 precision casting (per GB/T 3280-2015)
• Clamp: φ114-165 mm adjustable, 304 forged (per GB/T 1220-2007)
• Bolts: M16×100, 304 solution treated (per GB/T 3098.6-2014)
• Vibration pad: FKM fluoroelastomer 8 mm, temperature resistant to 200°C (per HG/T 3089-2017)
• Anti-corrosion coating: PTFE coating, salt spray resistant 1000 h (per GB/T 10125-2012)

Cost: Approx. 800-1200 CNY/set
Advantages: PTFE coating + 304 substrate; lifespan is several times that of Solution A in salt spray environments (based on industry project experience, typical scenario).

Solution C: GFRP Composite Extreme Bracket

Applicable Scenarios: Heavy-duty actuators (>200 kg)/Severe corrosion or insulation requirements
Lifespan: 30-50 years
Key Parameters:

• Bracket: 400×400×15 mm, GFRP pultruded, load capacity ≥500 kg (per GB/T 1447-2005)
• Clamp: φ165-219 mm adjustable, Inconel 625 precision casting (per AMS 5666)
• Smart monitoring: RFID chip records installation time and inspection logs (per ISO 15693)
• Installation tooling: Hydraulic torque wrench, preload controllable within ±3% (per GB/T 16823.1-1997)
• Spare fasteners: Same specification spares (per GB/T 3098.6-2014)

Cost: Approx. 2000-3500 CNY/set
Core Advantages: GFRP is non-conductive and non-corrosive; Inconel 625 exhibits zero corrosion in seawater/acid/alkali environments.

2. Parameter Table: Data Speaks

Data Sources:

• Lifespan data: Based on GB/T 20878-2007 “Evaluation of corrosion resistance of stainless steels” and ASTM D570-98 “Water absorption of plastics”
• Cost data: Q4 2023 market average (tax and shipping included)
• Maintenance intervals: Referencing JB/T 8210-2014 “Valve actuator installation and maintenance specification”

3. Matching Material to Load Conditions in Three Steps

Key Decision Points:

1. Environmental corrosion level: Per ISO 12944-2, above C4 must select Solution C
2. Actuator weight: Over 200 kg only Solution C (Solution B max load 200 kg)
3. Maintenance cost: Solution A annual maintenance ~800 CNY (labor + parts); Solution C only 200 CNY

4. Real Case: Wrong Choice Costs 80,000 CNY/Year

A chemical plant chose Solution A for an outdoor chlorine environment and saw repeated bolt loosening and bracket corrosion failures year after year — after switching to Solution C, no similar failures occurred.

Cost Comparison:

• Solution A: 3-year total cost = 500 CNY (bracket) + 42,000 CNY (repairs) = 42,500 CNY
• Solution C: 3-year total cost = 3,500 CNY (bracket) + 0 CNY (repairs) = 3,500 CNY

Conclusion: Choosing the wrong solution costs an extra 80,000 CNY per year in repairs.

5. Summary: Two Key Takeaways

• For high-frequency vibration or corrosive environments, GFRP composite brackets with Inconel 625 clamps (Solution C) are the most reliable choice.
• Q235B carbon steel brackets (Solution A) are only suitable for light-duty, dry indoor applications and require frequent inspection.

6. Next Steps: What to Prepare

1. Inspect existing brackets: Check bolt torque using a torque wrench (refer to GB/T 16823.1-1997 for preload values).
2. Assess environment: Use ISO 12944-2 corrosion classification to determine the severity level.
3. Select solution: Based on the decision tree, choose the appropriate bracket. For dry environments, Solution A is suitable; for corrosive environments, Solution C is recommended.
4. Prepare specifications: Actuator weight, environmental conditions, and required standards for quotation.
