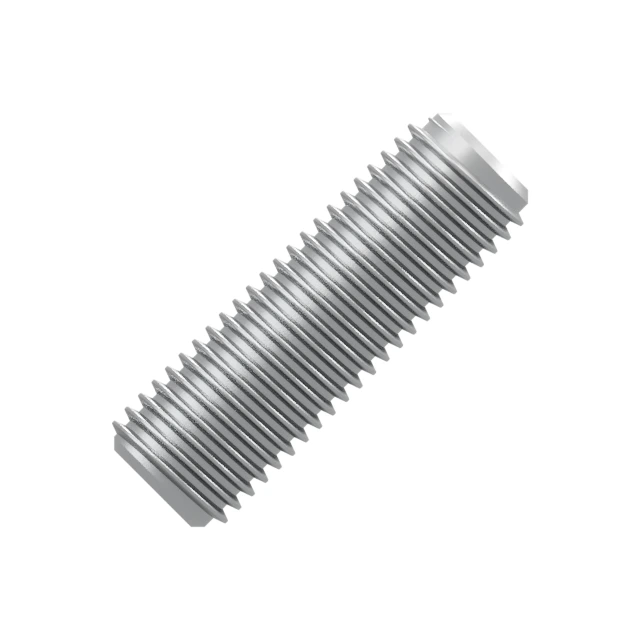

Double-End Studs M16×50 A2-70 Stainless 304
Specifications
- Standard
- GB/T 901-1988
- SKU
- SB-000112
- Nominal Diameter
- M16
- Length
- 50 mm
- Material
- Stainless 304
- Grade
- A2-70
- Finish
- Plain
- Thread Pitch
- 2.0
- Unit Weight
- 67 g/pc Geometry-based estimate, not an inspection weight, for quotation and freight planning
- Type
- Standard Part
Unit weight is a geometric estimate (base metal, coating excluded; HDG ≈ +4.5%); trade settlement by actual weight.
Standard Basis
GB/T 901-1988
Common equivalents below; confirm dimensions and drawing before substitution.
Spec Range
M16 × 50mm · 同族 200 个规格
This SKU is sourced per order; other lengths/materials in this family below.
Material & Grade
Stainless 304 · A2-70
304 austenitic stainless, Rm≥700 MPa, general corrosion resistance
Surface & Finish
Plain
Plain / no coating: indoor dry environments
Standard Equivalents
Equivalence is based on published standard-family information (Identical = interchangeable; Equivalent = dimensions/tolerances may differ, verify drawings before substitution).
| System | Standard | Equivalence | Note |
|---|---|---|---|
| GB | GB/T 901-1988 Primary | Identical | Chinese double-end stud standard family (bm=1.25d) |
| DIN | DIN 835 | Equivalent | Common commercial equivalent (bm=2d); confirm thread engagement on order |
Where It Fits
Food / Light Chemical
304 (A2) general corrosion resistance, food equipment, indoor humidity, light chemical duty
Custom to Drawing
Lengths/materials/grades not listed can be manufactured to drawing or standard
Related Reading
FAQ
MOQ and lead time?
Sourced per order or made to drawing. MOQ and lead time are confirmed at quote time by quantity, material and finish. Other sizes in this family are listed above; unlisted specs can be sourced to your drawing.
Can material or grade be substituted?
Current grade: 304 austenitic stainless, Rm≥700 MPa, general corrosion resistance. Swapping grade/material changes strength and corrosion resistance (e.g. 8.8→10.9 raises strength, 304→316 raises chloride resistance), re-check design load and environment before substitution.
How do I choose the finish?
Plain / no coating: indoor dry environments. Other finishes (HDG, Dacromet, electro zinc) can be quoted on the same size.
Other Sizes in this Family
200 sizes total · current M16×50
M16 38 sizesOpen ▾
Carbon Steel · 8.8 · Zinc Plated
Alloy Steel · 10.9 · Dacromet
Carbon Steel · 8.8 · Zinc Plated
Alloy Steel · 10.9 · Dacromet
Stainless 304 · A2-70 · Plain
